Laying Duck Cage

Short Description:

The H-shaped layer duck cage can be used for large-scale and industrial feeding of layer ducks, featuring short building period, low cost and good economic benefits.

Product Detail

Product Tags

Technical Description

Framework of the equipment adopts H-type structure layout which is made of high quality galvanized sheet. That makes the whole structure firm and reliable with high durability and low maintenance cost;

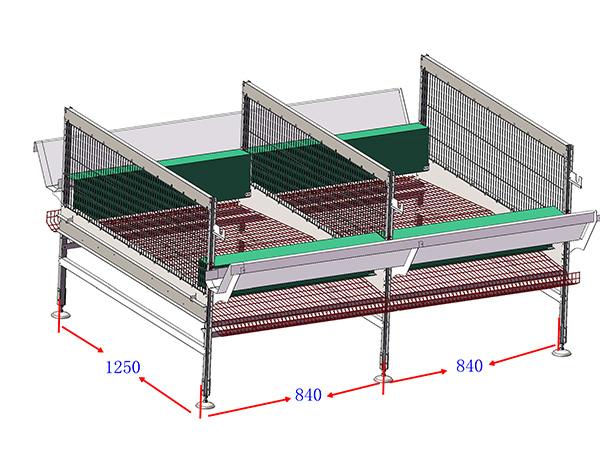

Cage size is length 840mm×width 1250mm×height700mm. Each cage can raise 18 ducks and fully meet the living space for each duck;

The feed trough is made of high quality galvanized plate or PVC material with superior corrosion resistance. Running feeding cart makes dropping feed evenly;

The galvanized plate material feed trough with high strength and plastic feed trough in the lowest tier with track pipe are all allowed to tread on for daily patrol management;

The baffle is made from high-quality PVC material to prevent duck manure corrosion;

The cage door is designed by adopting the vertical lattice structure to ensure that the duck will only protrude from the cage when feeding;

Double drinking lines are adopted for water supply which is clean and convenient for adding medicines and epidemic prevention;

High quality Al-Zn coating mesh is employed to prevent bottom mesh from duck manure erosion effectively.

Product Parameters

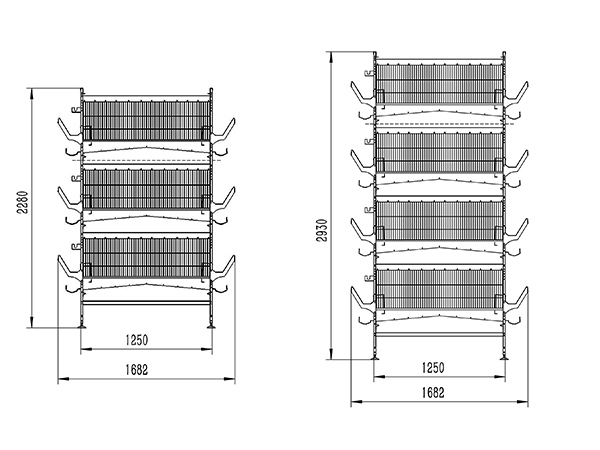

No. of tier average area/bird(cm2) birds/cage tier distance(mm) cage length(mm) cage width(mm) cage height(mm)
3 583 18 650 840 1250 540
4 583 18 650 840 1250 540

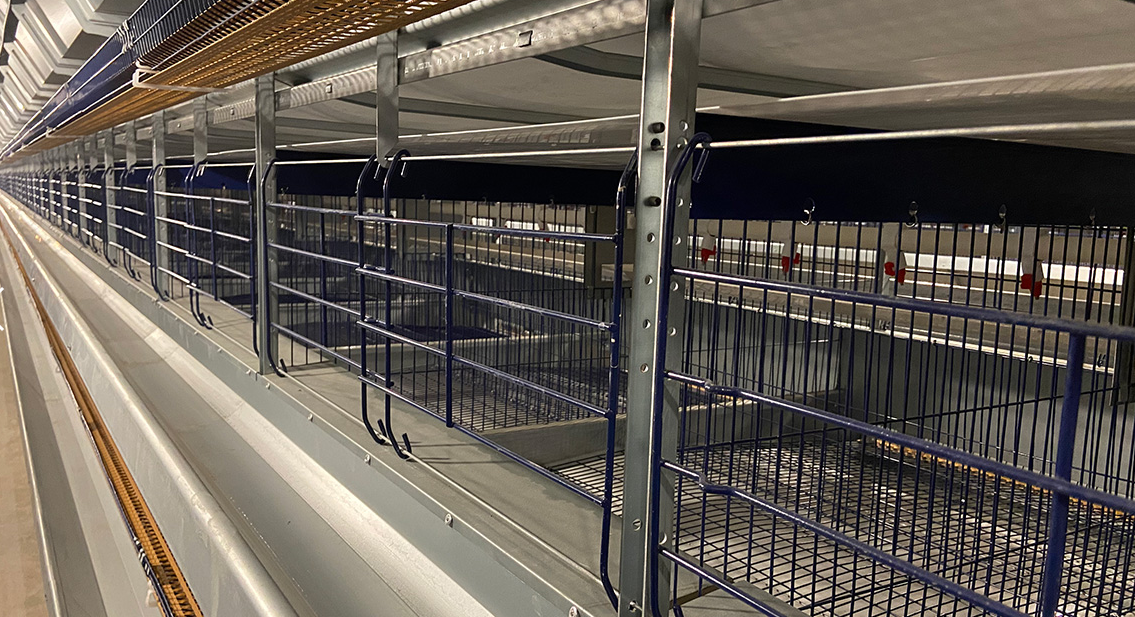

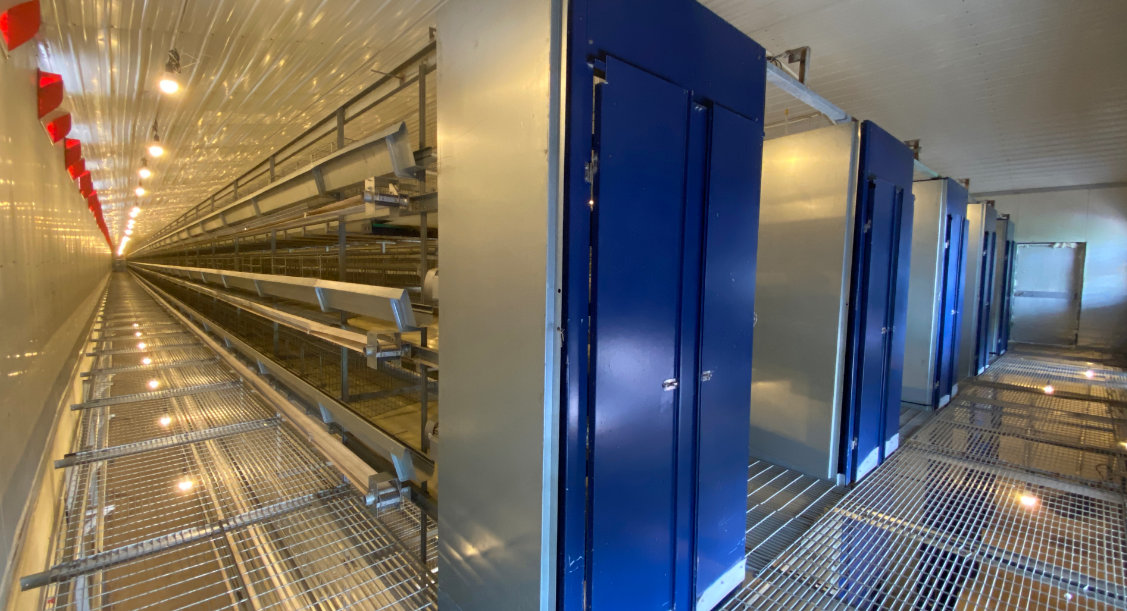

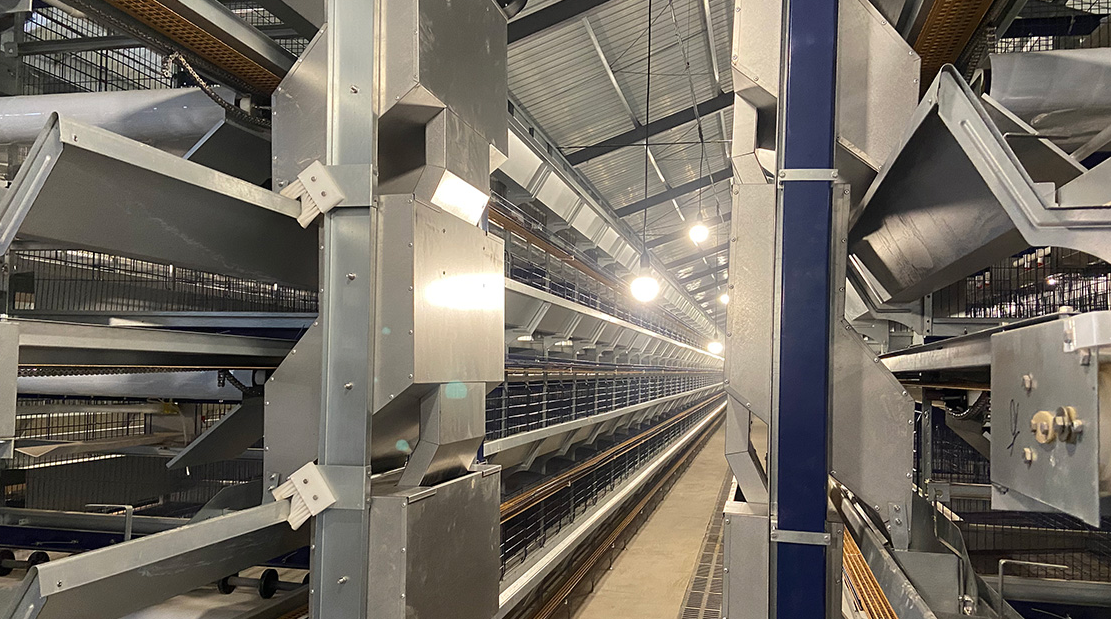

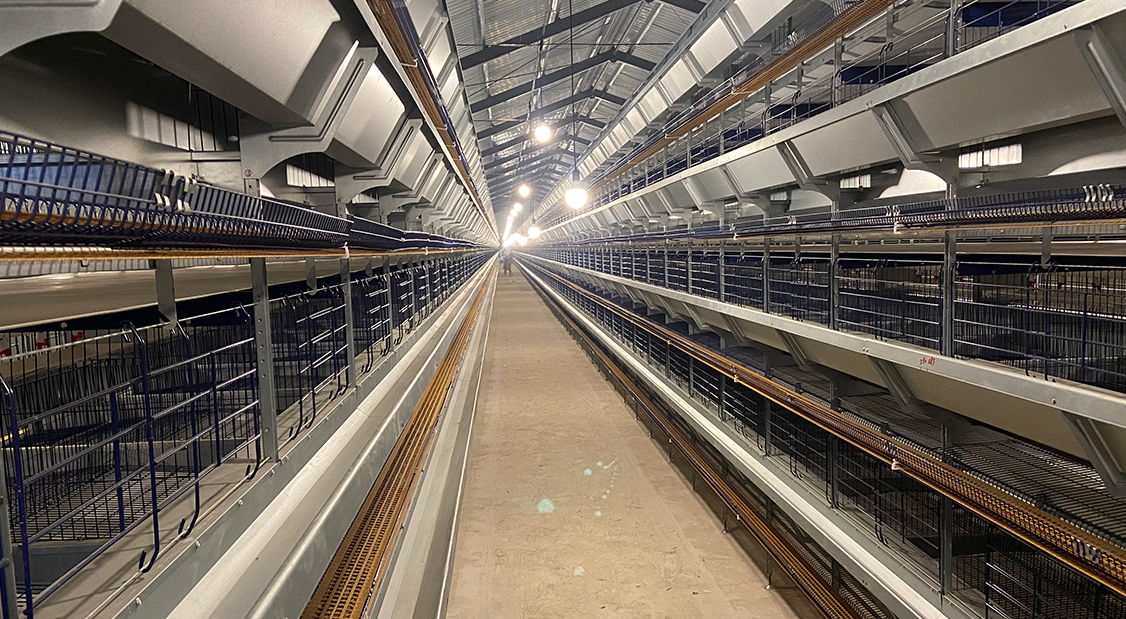

Product Display
