Silo Conveying System

Short Description:

For feed storage equipment, feed can be filled by feed charging truck into the silo.

The feed is driven to move in the feeding pipe by the rotation of the spiral spring auger from the silo and delivered to various feeding units including the sub-silos and the feed boxes, and the feeding is automatically controlled by the feed level sensor at the end of the feed line.


Product Detail

Product Tags

Technical Description

The main part of galvanized silo is made of steel sheets with two sided zinc coating which thickness is 275 g/m2  with strong corrosion resistance and long service life of sealing gasket/sealing strip;

Standard ladder of silo is equipped with protective fence, which is safe and reliable;

The design of bent-up bars improves the strength and tightness;

The middle coaming is designed with drain slope to facilitate the drainage;

It has a transparent observation hole on the lower cone to check the feed level inside of the silo which is locked by sealing washers with good sealing performance, high strength and good visibility;

Round head screws are used for the lower taper to effectively prevent retaining the feed;

The base is wide and thick, which makes the silo more stable and has a long service life;

All sections are treated with anti-corrosion treatment, which is durable;

Good corrosion resistance, long service life, easy for installation.

Product Parameters

Model No.

Capacity(m3)

No. of tier

No. of support

Height of silo(mm )

Diameter of silo(mm)

2T

3.2

1

4

3580 1585
3T

4.9

2

4

4460 1585
4.3 T

6.9

1

4 4400 2139
6.3 T

10

2

4 5280 2139
8.2 T 13.2

3

4 6160 2139
10.4 T

16.7

2

6 5457 2750
13.7 T

21.9

3

6 6337 2750
16.9 T

27

4

6 7217 2750
20 T

33.3

2

8 6515 3667
26 T

42.7

3

8 7395 3667
32.4 T

52

4

8 8275 3667

Product Display

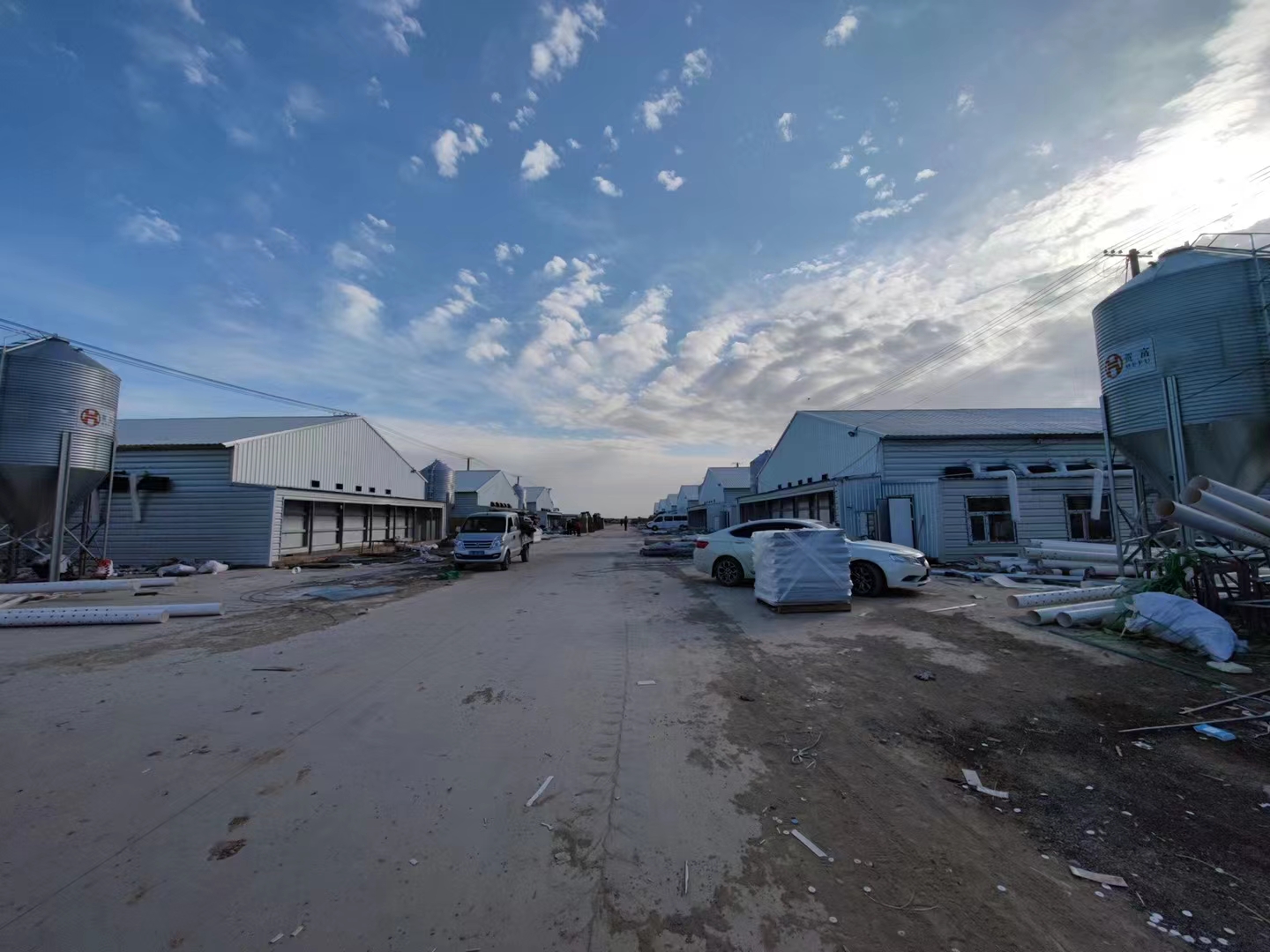

301060ee270246be1b9576a2a5ee7e4

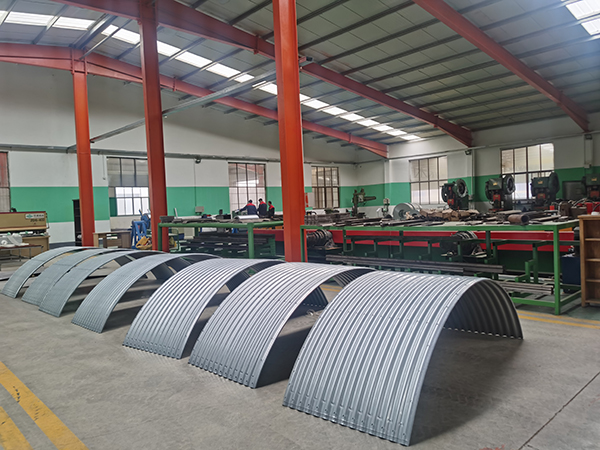

IMG_20220329_150115

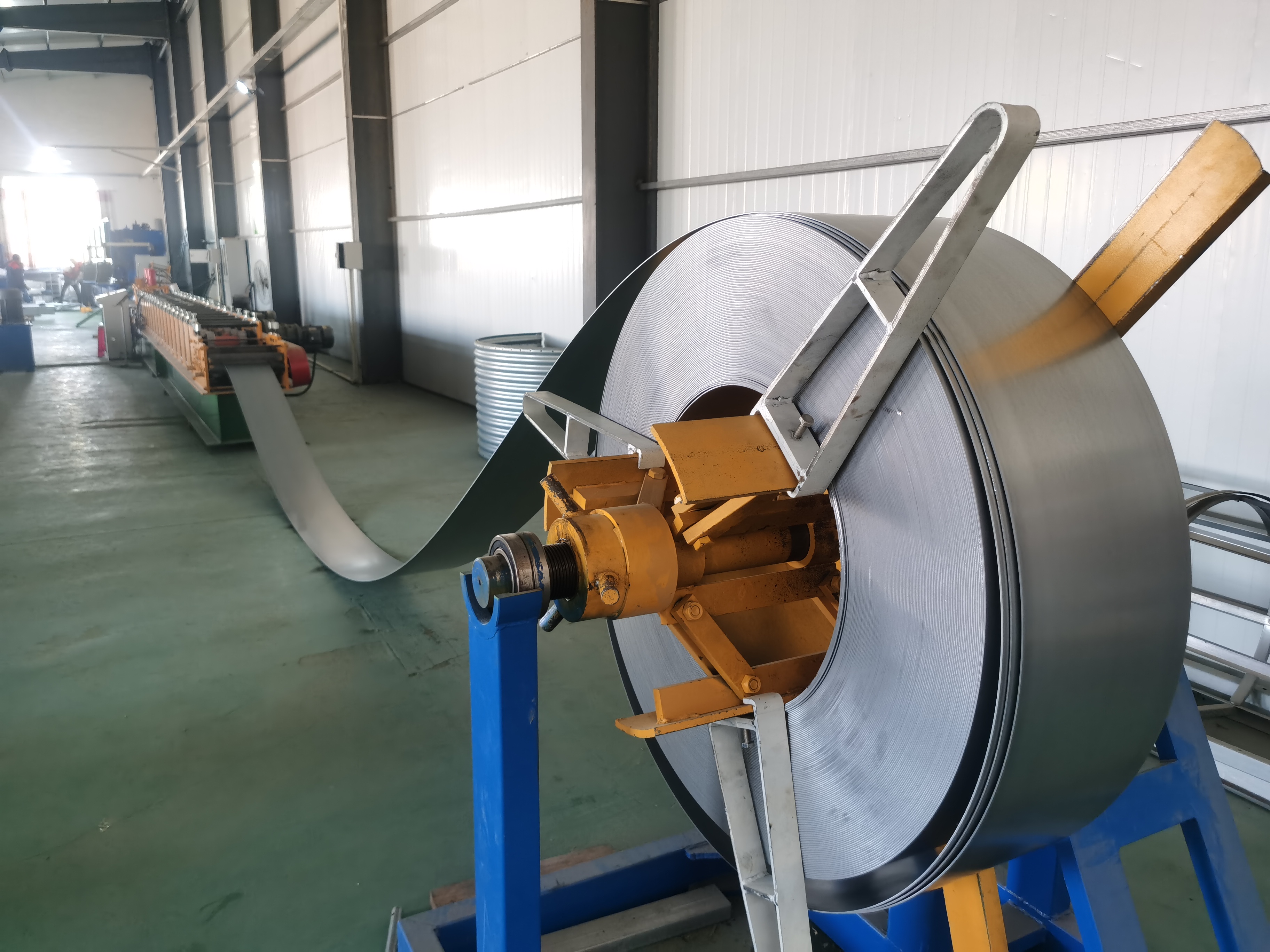

IMG_20201108_152011

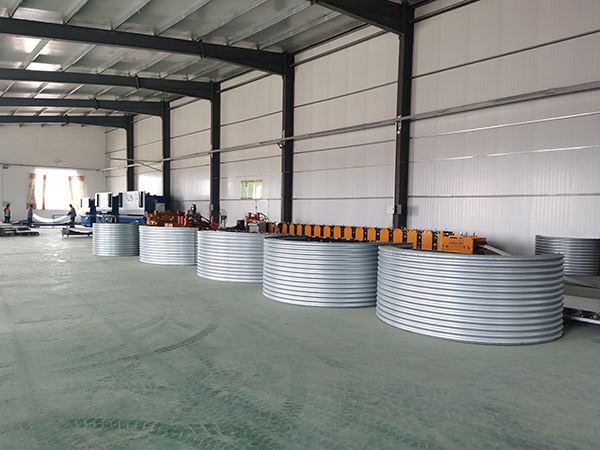

IMG_20200923_162157

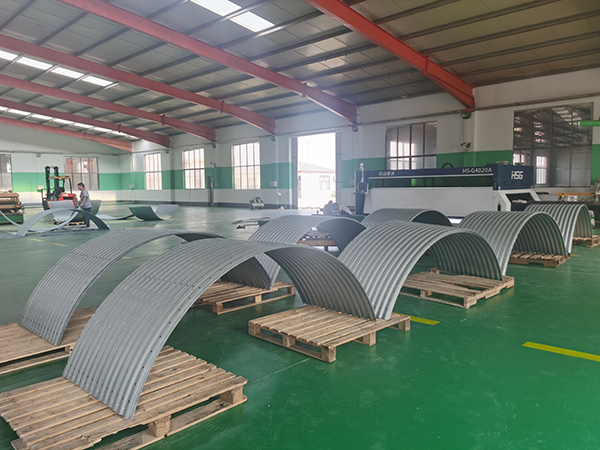

IMG_20210706_090628

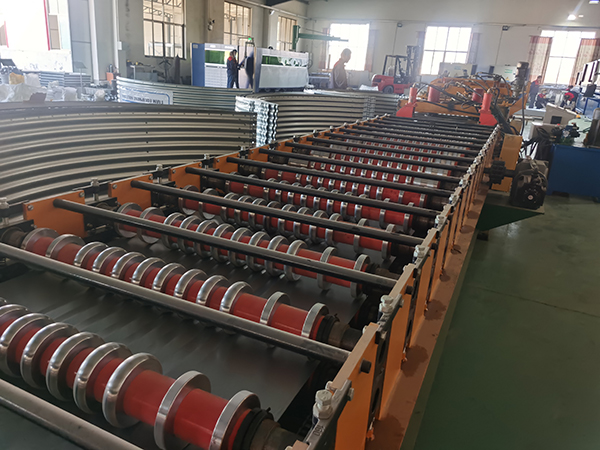

IMG_20201108_151951
