A Type layer Cage

Short Description:

A type layer cage equipment is a high cost performance cage designed by HEFU which is suitable for high temperature areas and reliable.  It is a good choice to ensure maximum raising quantity according to good natural ventilation and environment. The cage can be designed for 3-5 tiers.  As customers requirements, we can configure manure cleaning and feeding system to realize equipment installation and production.

Product Detail

Product Tags

Technical Description

The A frame System Layer Battery System is designed both open and close house all over the world, especially for open house in big farm who has enough land. It is more suitable to be used in tropical zone such as Africa, Southeast Asia and South Asia Countries.

The A frame System Layer Battery System from HEFU is hot-dip galvanized or Al-zinc coated Equipment. We can control the standard and quality because we has our own Wire Drawing Production Line to produce the cage wires, Automatic Cage Mesh Welding, Cutting, Bending and hot-dip galvanization for Cages and Cage Leg Frames.

The System Advantages

Greater number of birds is reared per unit of area, so it saves more cost for Farmers because it has much lower investment than H Frame Cage System;

More Suitable to use in rain-less district, durable and solid structure for long lifetime;

Easily to deliver and installation in clients farm and make maintenance;

The overlap parts are smaller so the chicken house can get much better ventilation, it can be used both in open or close house according clients’ needs;

Automatic feeding, egg collecting and manure cleaning can save energy and labor costs;

The board are made of Aluminum Zinc plate, antirust and strong structure.

Ⅰ. Automatic Feeding System:

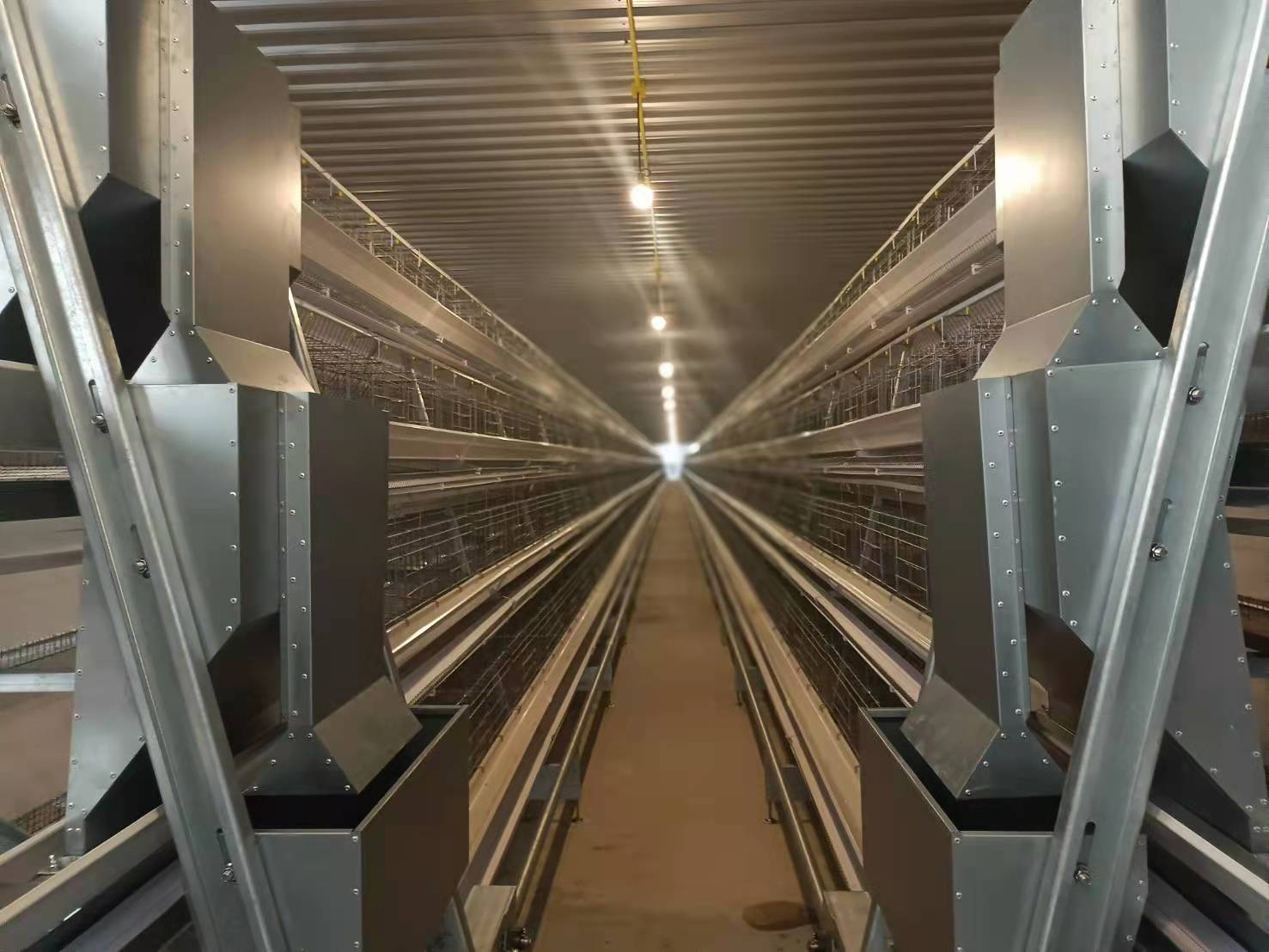

The Automatic Feeding System is connected with the augers which delivered the feed from silo to the hopper and then can transfer the feed to feed troughs;

Very easy to make installation and connect with the silo;

Prompt steps to control feed wastage because of the longer design feed trough edge;

The feed quantity provided to layers can be adjusted;

Saving more labors because the automatic control panels can control feeding trolley.

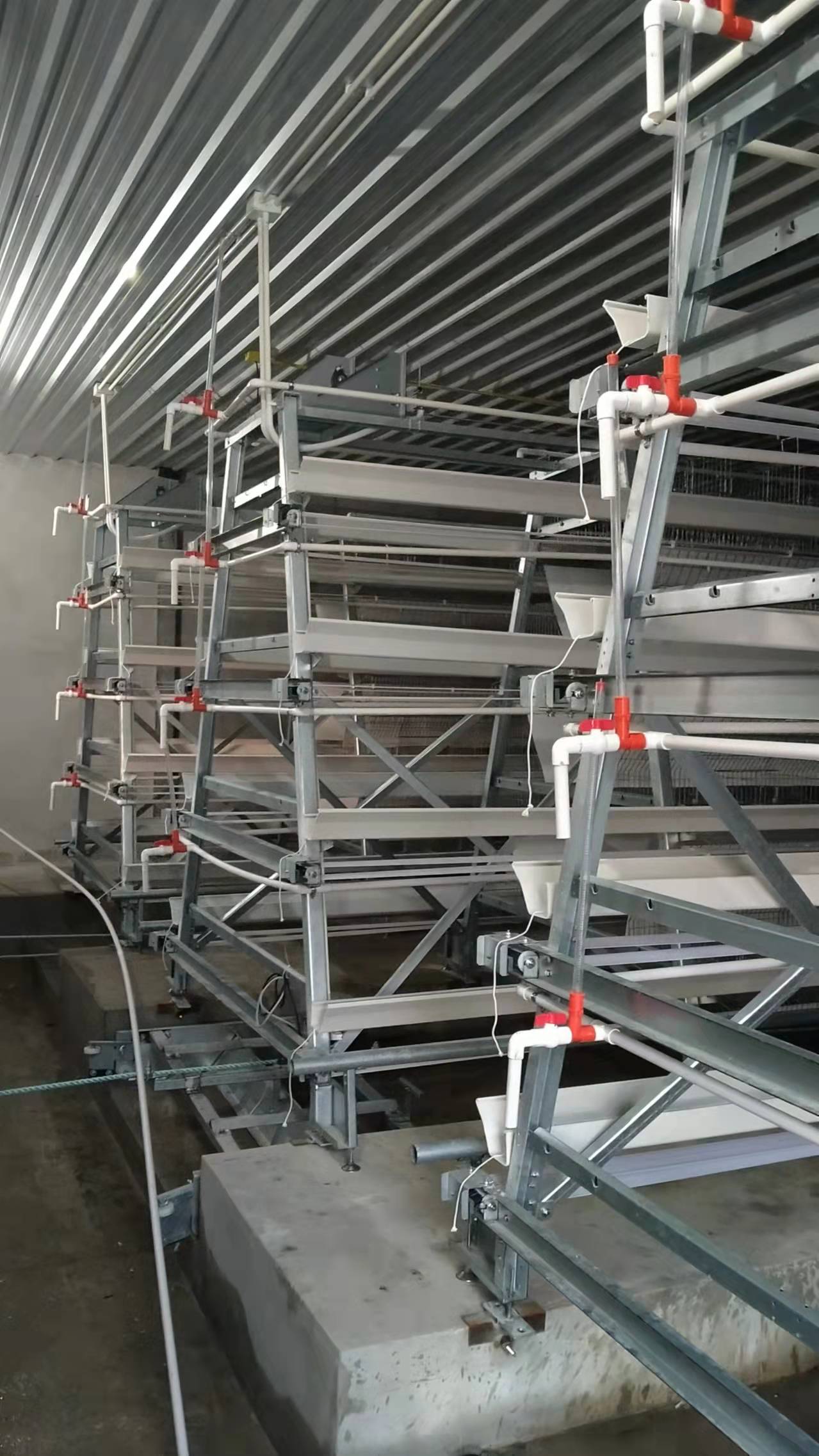

Ⅱ. Automatic Drinking System:

With 360 degree flowing nipple drinkers, water drip cups and water pressure regulators, terminals, splits, water filters makes sure the water is clean and NO harm to the layers;

Automatic Drinking System: Square or Round pipes (thickness 2.5mm) with stainless steel nipple drinkers, and constituted by Water Pressure Regulators (or water tank), filters and dosers from DOSATRON.

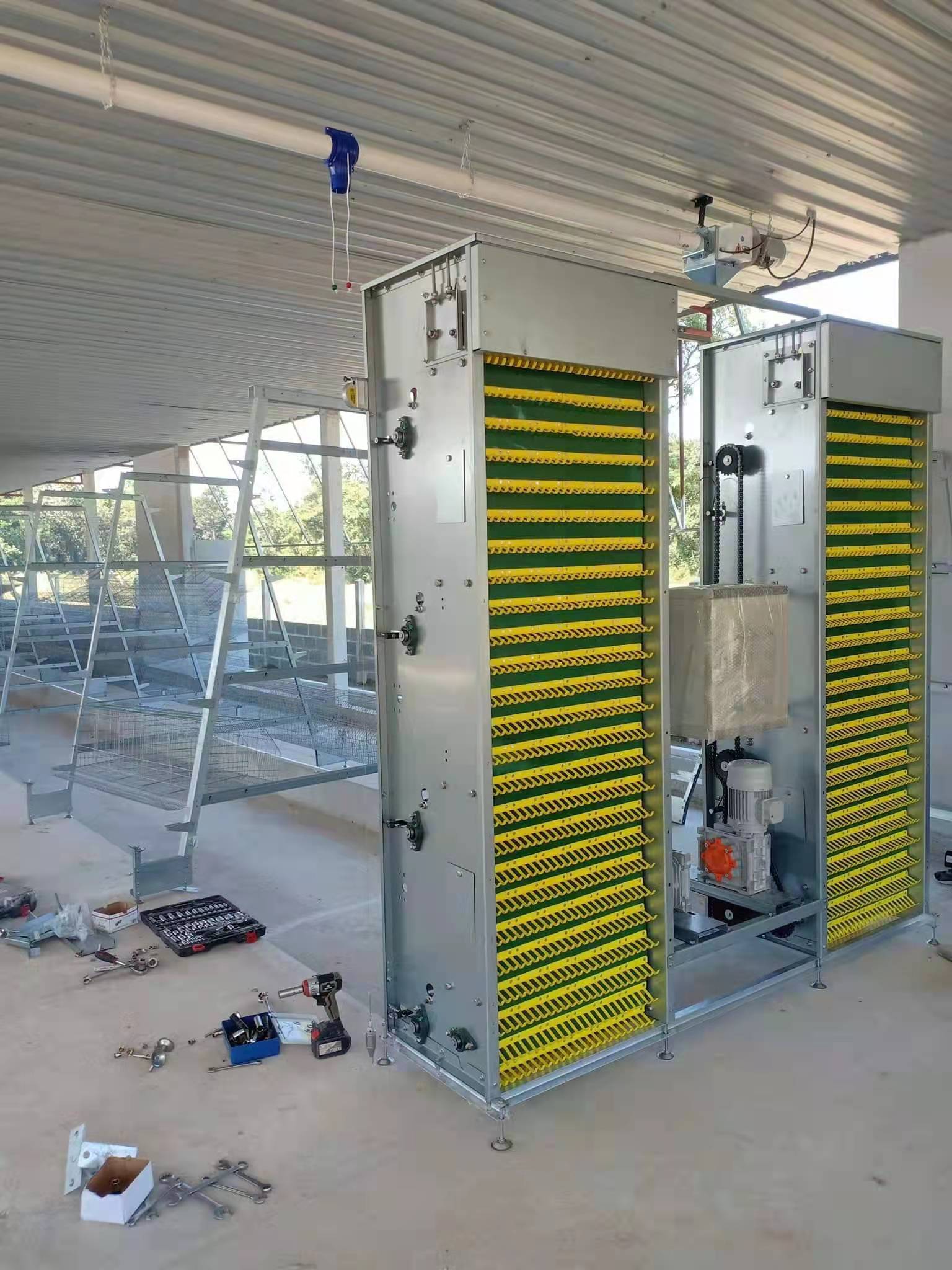

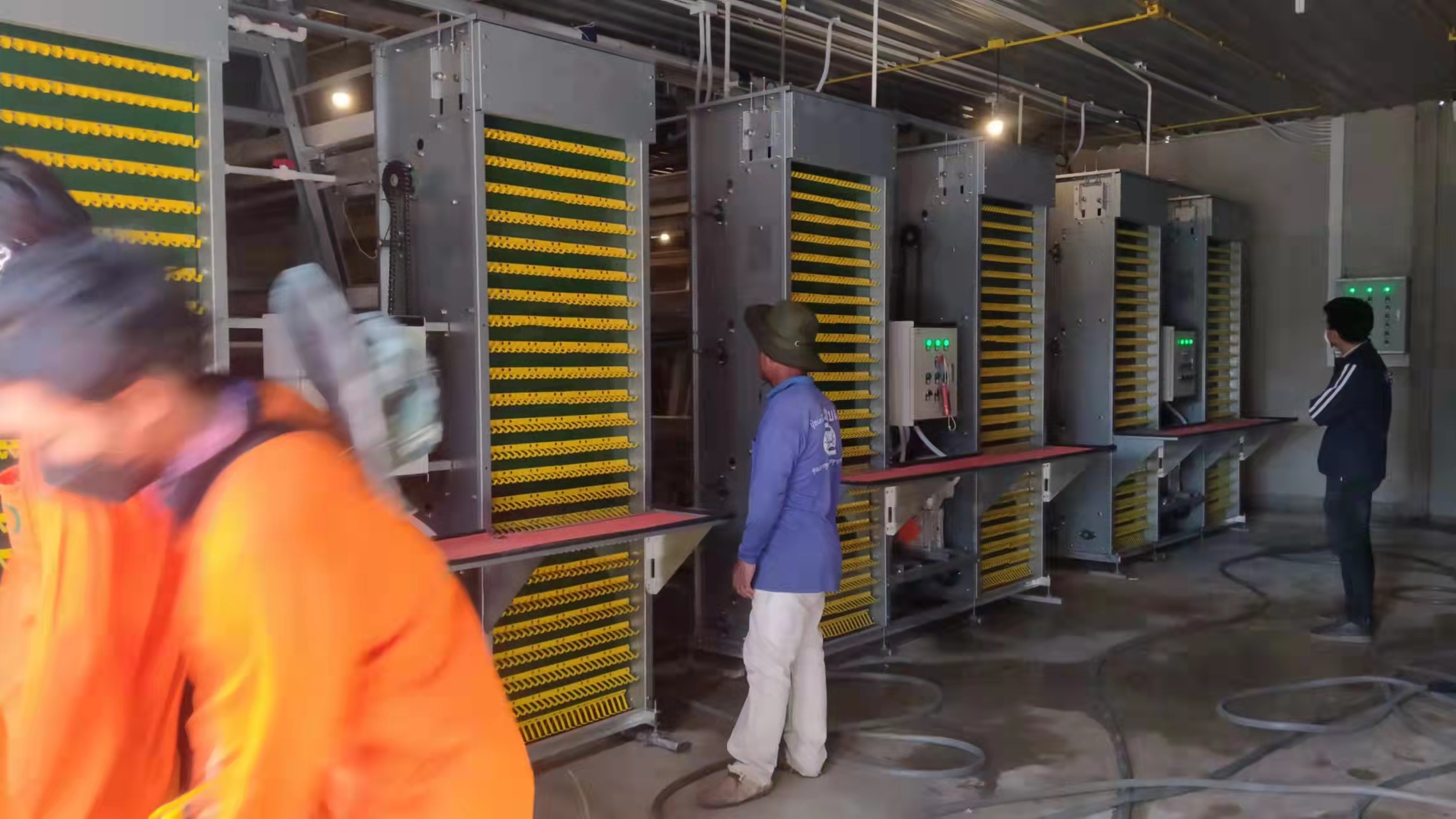

Ⅲ. Automatic Egg Collection System:

Egg collection system is worth investing. In layer chicken farms, all we have done is for getting eggs successfully and unbrokenly. So egg collection system plays an important role in chicken farms, it has the following characters:

Labor saving and time saving;

Low egg breaking rate;

Easy operation and management;

The egg conveying belt is abrasion resistant and has long service life.

Ⅳ. Automatic Manure Removal System:

The Scraper Type Manure Collection System or Manure Belt Conveyor Type are designed for A frame cage systems which designed lower tiers PP feces blocking curtains in order to prevent the manures dropping into the lower cages.

3D Diagram of A Type Layer Cage


average area/bird(cm2)


cage length(mm)

cage width(mm)

cage height(mm)

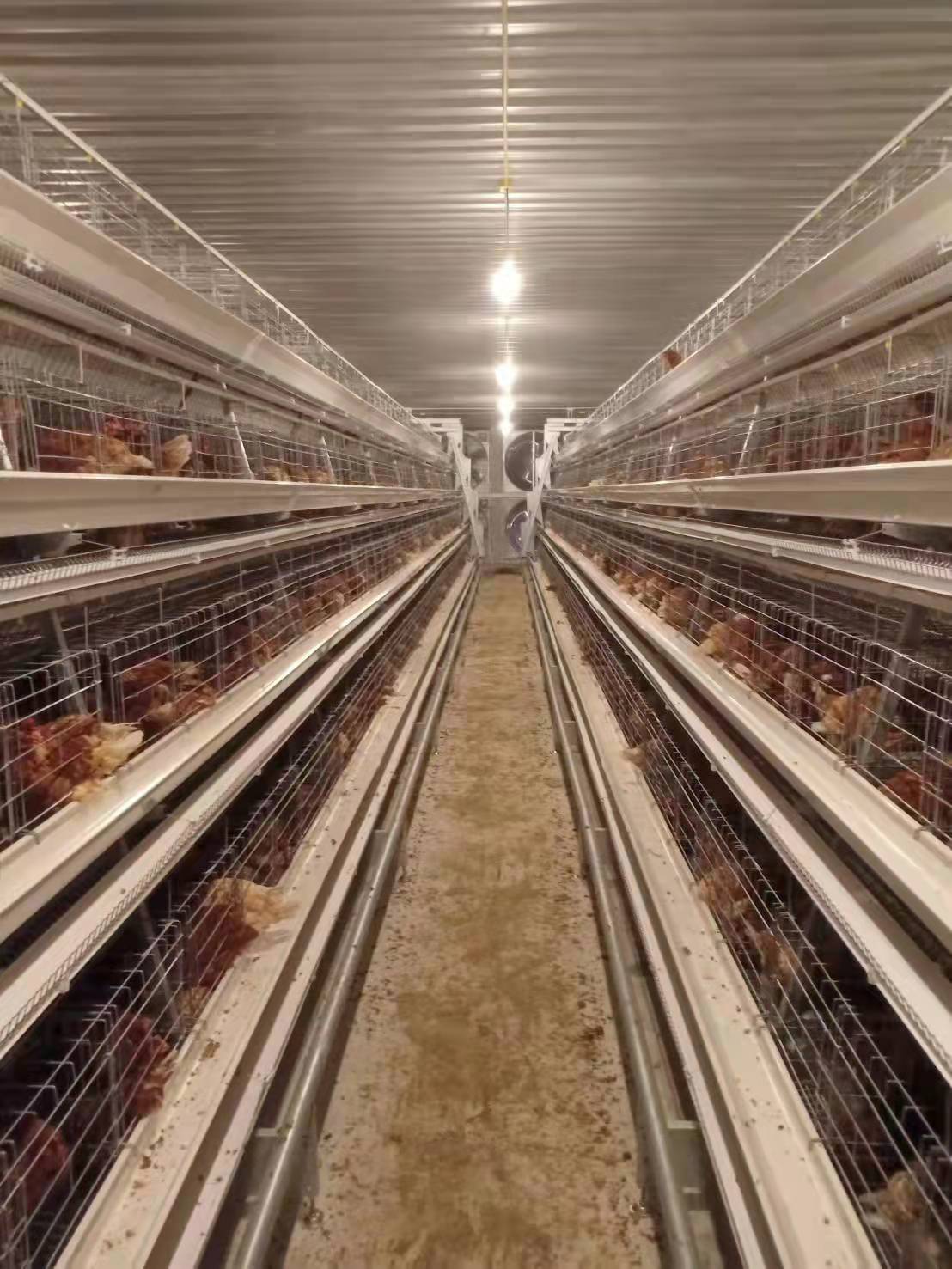

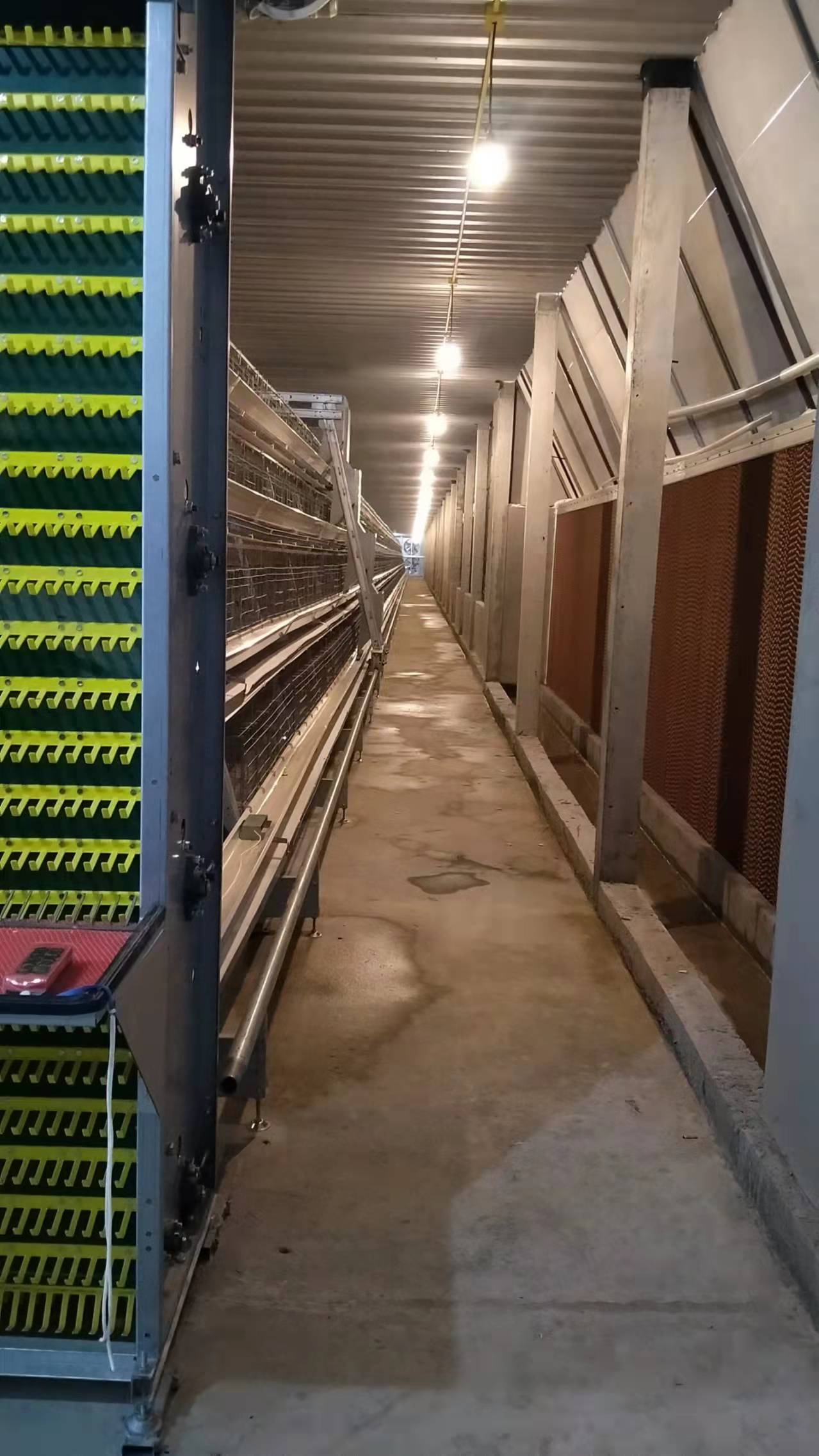

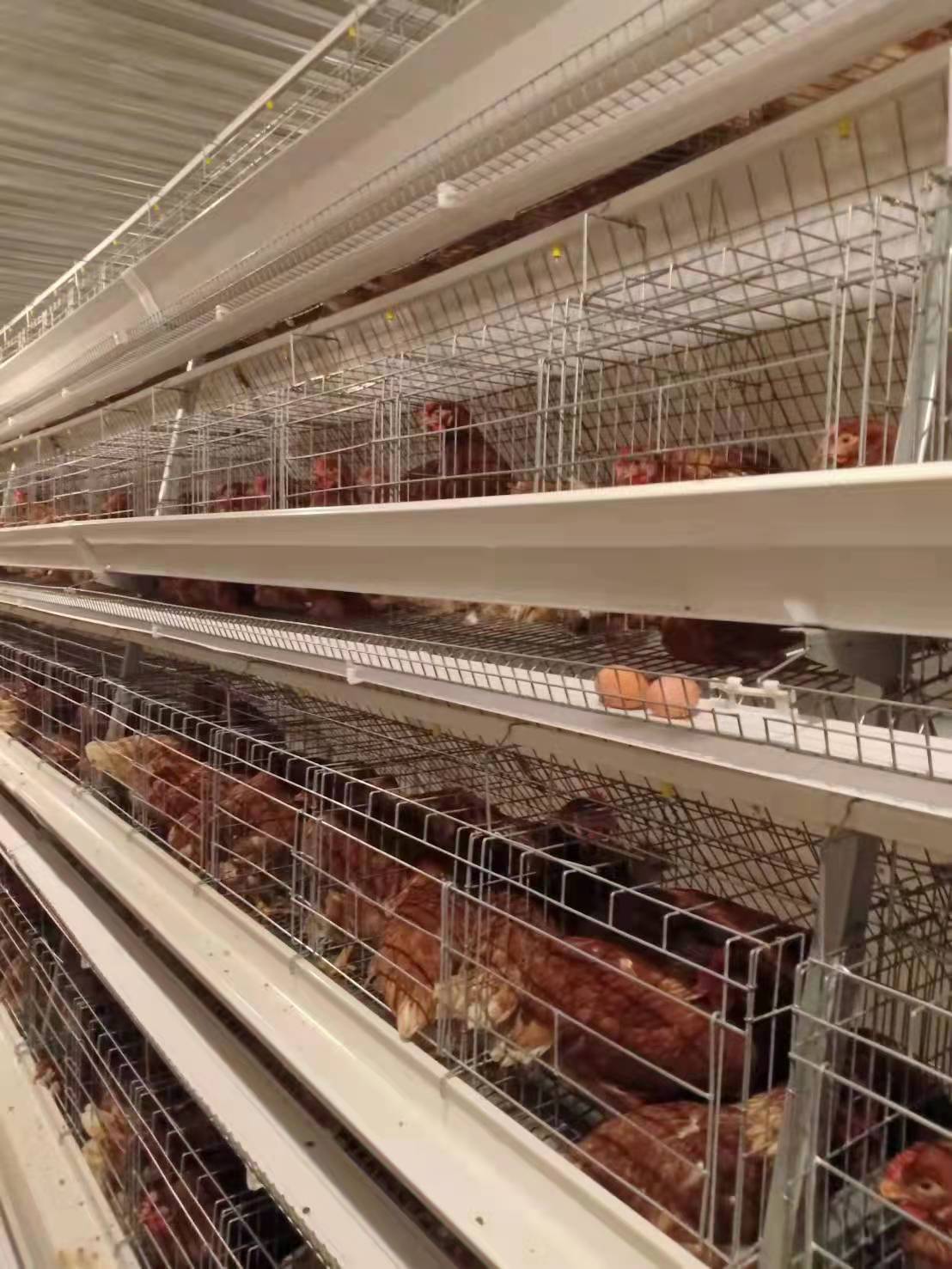

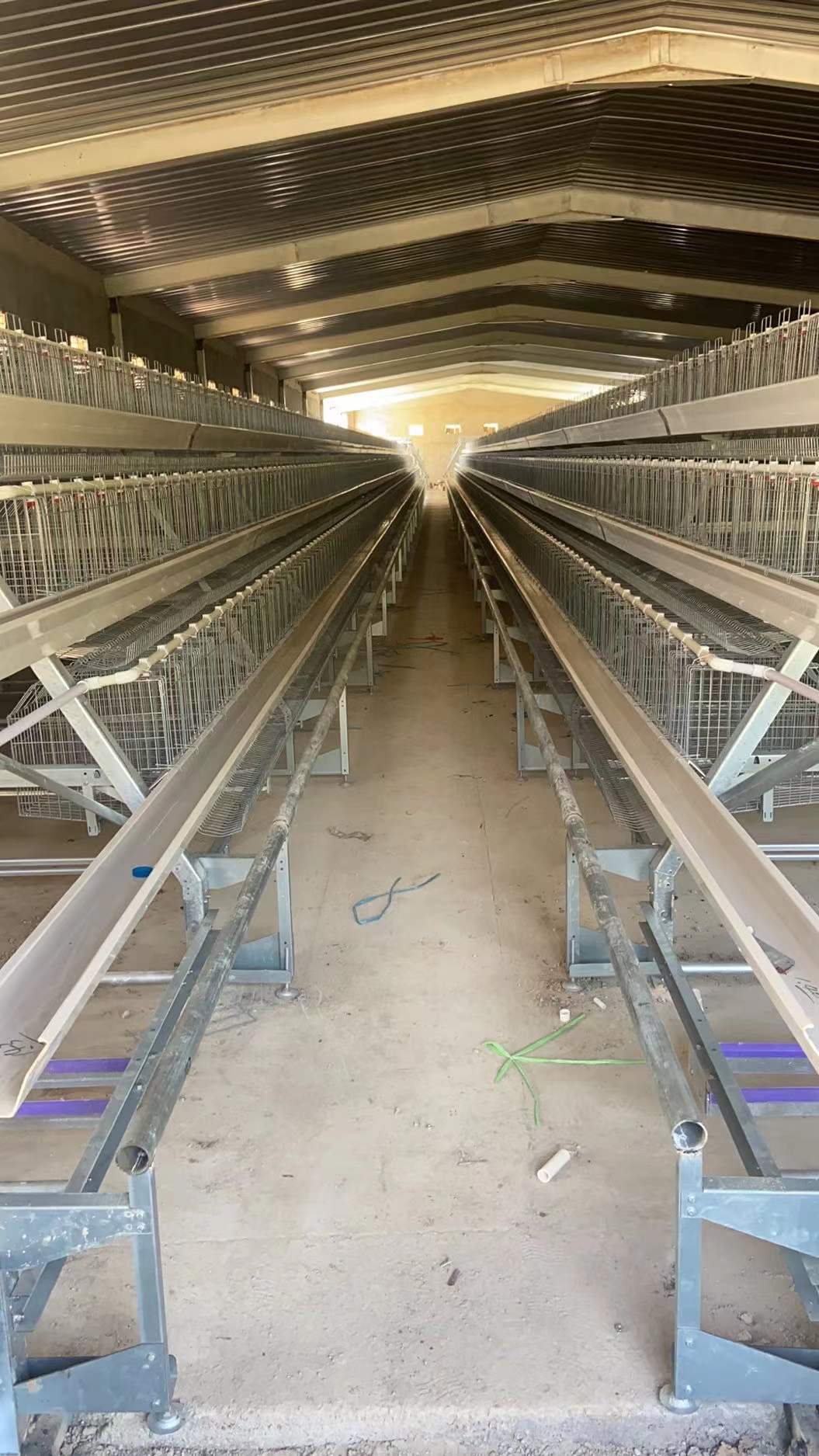

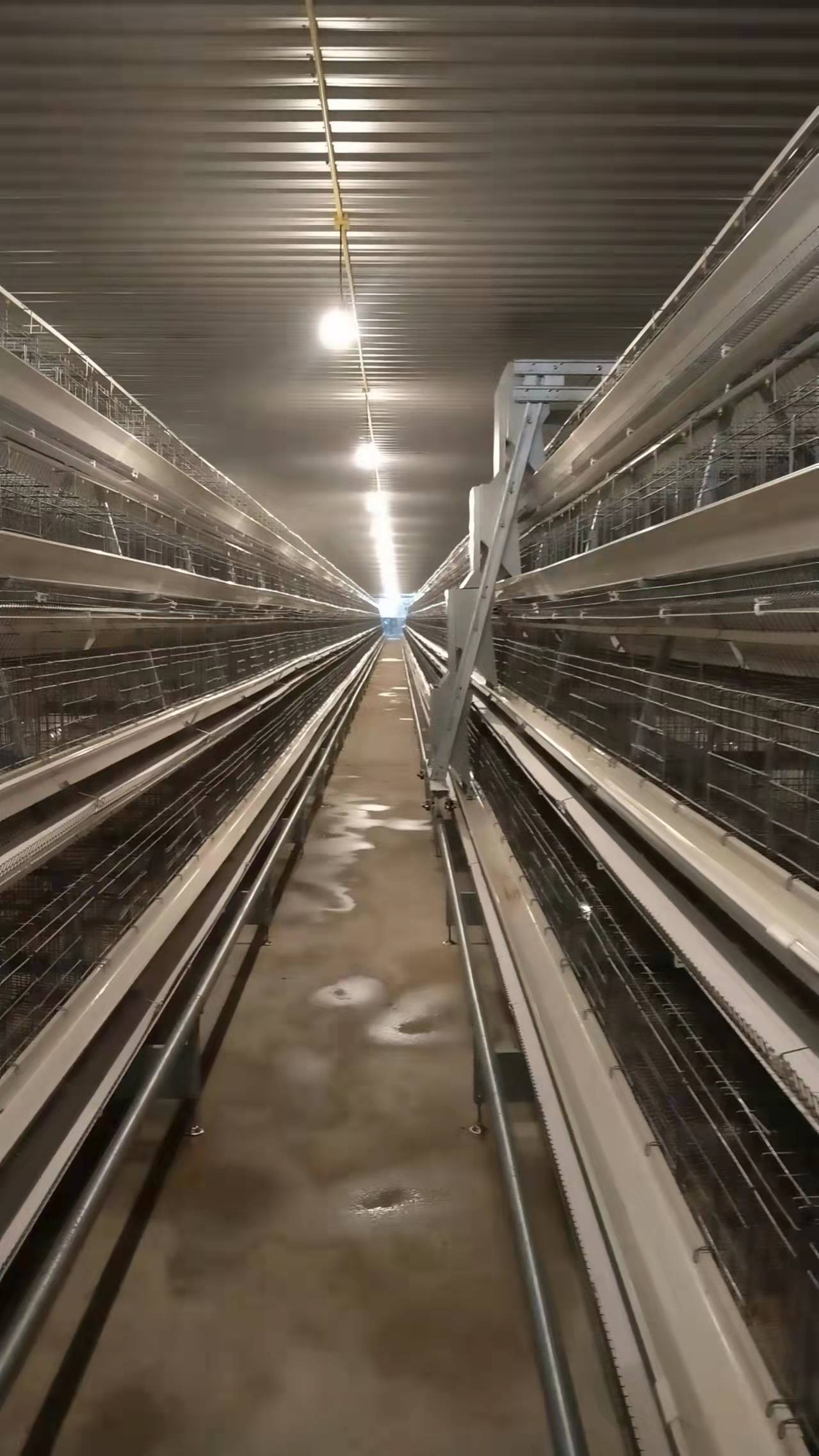

Products Display
